The Top 7 Methods For Making Rapid Prototypes

The Top 7 Ways to Create Rapid Prototypes

Prototyping is an important step in the design process when creating a new product. Before your product enters the production phase, this stage of development provides valuable insights into its quality.

The process can be used to test various component options, lowering risk and improving overall design quality. Furthermore, it saves time and money by avoiding costly mistakes.

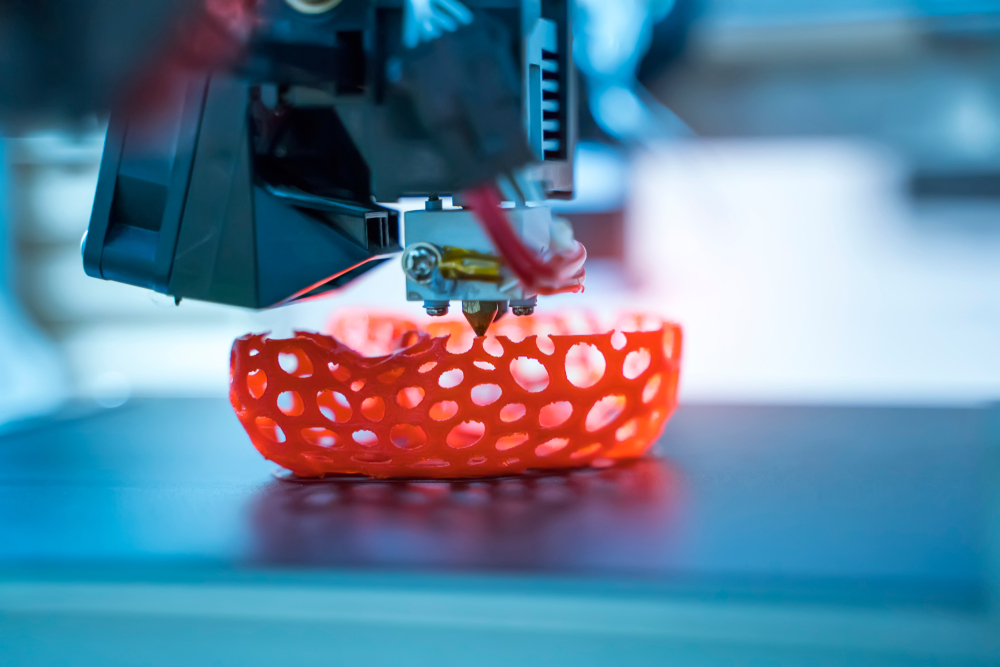

1. 3D Printing

There are numerous methods for creating rapid prototypes, but 3D printing is one of the most popular. This process enables businesses to quickly create low-volume, low-cost, and incredibly accurate proofs of their concepts.

It is also an excellent way to simultaneously test a variety of design variations for your product. Previously, it was difficult for engineers to test a large number of designs for their 3D Printer Parts products because machining processes were costly and time-consuming, but this method allows you to change any dimension on your prototype at any time without having to re-make the entire product.

Another method for producing a prototype is through digital light processing (DLP). This method involves exposing a portion of the liquid to concentrated ultraviolet light, which causes it to harden into a solid object.

It is an excellent method for producing lightweight and strong parts. It also enables complex internal designs that would be impossible to achieve using traditional manufacturing techniques.

2. CNC Machining

CNC Machining Service (Computer Numerical Control) is the process of converting a digital design into a physical part. It is an extremely precise manufacturing method, with tolerances measured in thousands of an inch.

CNC machines are highly efficient, with production times as little as a few days. As a result, they are ideal for small-scale manufacturing or even a one-off prototype.

However, this is not the only method for producing a precision machined part. Aside from CNC, several other processes, such as Binder Jetting and Laser Sintering, can convert a digital design into a physical part.

Polyurethane Vacuum Casting, which uses a silicone mold to create a model that is filled with a two-part polyurethane resin, is another popular option. This results in a high-quality, low-volume prototype that is functional and closely resembles injection-molded parts.

This is an excellent method for rapid prototyping and is also very environmentally friendly, requiring less materials and energy than other methods. It can also be used for metal parts, allowing for the creation of lighter-weight components while still meeting specifications.

There are many different types of CNC machining machines available, so choosing the right one for your needs is critical. Contact a 3ERP representative for assistance.

3. SLS

There are several approaches you can take if you want to build a prototype for your product. One method may make more sense than another depending on your available resources, timeline, and product requirements.

The first option is to use a 3D printer. This is an excellent method for producing quick, low-cost prototypes that can be easily scaled up or down depending on your requirements.

A laser sintering process is a more expensive and time-consuming option. A high-powered laser is used in this method to fuse powdered metal and plastic parts.

It's worth noting that, while SLS is an effective prototyping technique, it can also be quite harmful to the environment. SLS is a skin irritant and, in high concentrations, can be toxic to aquatic life.

SLS is a common ingredient in cosmetics and shampoos, but many people find it irritating to their eyes, skin, and hair. This is especially dangerous for people who have sensitive skin or eczema. The best way to avoid this issue is to use a safer substitute. Another product type available on the market is the Custom Screws.

4. Binder Jetting

Binder jetting is one of the quickest and most reliable methods for producing rapid prototypes. This method deposits a thin layer of low-viscosity binder on a build platform using multiple nozzles that move at high speeds. As a result, the part is smooth, detailed, and precise.

Binder jetting parts are ideal for not only demonstrating new designs, but also testing their mechanical performance. They can be printed on a wide range of materials and customized to meet specific needs.

Another benefit of binder jetting is that it is a room temperature process, making it an excellent choice for producing biomedical prototypes. Furthermore, the technology can be used to create prototypes of complex geometric designs that would be difficult to 3D print otherwise.

Nozzle droplet formation, powder flow and packing, powder-binder interactions, and binder curing are all process parameters that influence the quality of binder jetted parts. Furthermore, the geometric features, nominal dimensions, and orientation of the powder bed, as well as post-processing steps, influence the density and dimensional accuracy of the part. Binder jetting parts, for example, shrink slightly during sintering. This can result in non-uniform part size, which is why these factors must be considered during the design stage. Another product type available on the market is the Metal Parts.

5. Laser Sintering

Selective laser sintering is an additive manufacturing technique that can work with a wide range of materials. It is a type of powder bed fusion (PBF) technology that can work with plastics, metals, ceramics, and various composite material powders.

SLS involves the use of a high-powered laser to fuse a layer of powdered thermoplastic material into a solid 3D object. Carl Deckard and Joe Beaman of the University of Texas patented the process in the 1980s.

Because it is fast and efficient, SLS is an excellent choice for rapid prototyping and small-batch production. It also has the ability to print complex geometries that other methods cannot.

However, there are some drawbacks to using SLS to create rapid prototypes. First and foremost, SLS prints have lower tensile strength and are less flexible than injection-molded parts.

Another disadvantage of using SLS is that it is porous. This can cause chemical resistance issues and cause the parts to deteriorate over time.

As with any RP process, understanding the sintering and post-processing properties of the components produced is critical. This will assist you in making the most of your RP and ensuring that the final product is the best it can be.

6. CNC Turning

CNC Turning Service is a common manufacturing process that is also an excellent choice for rapid prototyping. It entails holding a raw material bar in a chuck and rotating it while it is fed with a tool that removes material until the desired shape is achieved.

The procedure can be carried out in a variety of shapes, including squares and hexagons. It's also referred to as subtractive machining because it focuses on removing material from raw materials to create the final product.

This process is commonly used to manufacture metal components such as shafts and rods for a variety of industries. It can, however, be used to make plastic parts for a variety of applications.

Secondary operations such as external grooving and profiling can also be performed by turning centers. This allows them to create a diverse range of workpieces on a single machine.

7. CNC Milling

CNC milling is an excellent method for producing prototypes in a variety of industries. It can work with a wide range of highly machinable materials, including the strongest metals as well as wood and plastics.

This process produces prototypes that are more accurate and representative of the final product than 3D printing, reducing the likelihood of unforeseen problems. They can also be tested to ensure that the parts they manufacture are usable.

CNC milling, as opposed to 3D printing, can produce smoother components with rough surfaces and uneven materials. Streamlined prototype designs can also help you save money in the long run by reducing the amount of machining required.

This type of machining is especially useful for producing parts that must be machined at a faster rate than 3D printing can provide. Parts that must withstand high temperatures or pressure, for example, require stronger metals and alloys than can be created using traditional prototype methods such as 3D printing.

CNC prototyping is an essential part of the R&D process for more heavy-duty applications such as mining and oil extraction. The best material for a part is determined by several factors, including the part's function, stress load, and dimensional tolerance.
