How To Communicate Color, Material, And Finish Effectively, Tolerances

How To Effectively Communicate Color, Material, And Finish Tolerances

The attained part geometrical precision and tolerances in additive manufacturing (AM) are largely reliant on the AM technology, machine, and process parameters. As a result, determining the relationship between achievable tolerances and consequent costs is not possible in general.

Tolerance-cost optimization must be based on data that is representative of the real manufacturing conditions. To do this, benchmark artifacts and a design of experiment (DoE) covering both measurement and production constraints are necessary.

1. Describe the Material

Material Metal Parts is a term used to describe the substance that makes up a thing. It can be pure or impure, living or nonliving, and classed according to its physical and chemical qualities, geological origin, or biological purpose.

Metals (steel, aluminum, copper), ceramics (terracotta, glazed porcelain), polymers (polymer composites), and wood are among the most frequent materials. They are widely used in industrial and domestic applications, and they frequently have distinguishing features that set them apart.

Other materials are less obvious, but they are nonetheless useful in some applications. Material structure varies by kind, and the important material features have diverse length scales ranging from large-scale physical qualities to smaller-scale microstructures (for example, holes in foams or the weave in textiles).

Tolerances are used to ensure that products are acceptable when they leave the manufacturer's manufacturing facility. They may differ from one producer to the next and depend on the object being manufactured, its size, and color.

The first way for defining tolerances is to statistically assess the acceptability assessments of several observers. The outcomes of such statistically analyzed modifications can be compared to historical data to identify the tolerance limits for the same product under various settings.

This method is very effective for establishing tolerances for colors with varying brightness, chroma, and hue. This information can be put into the specs to ensure that the provider produces a consistent quality product that fulfills the tolerances.

Observing changes in the same material under different situations is another way for finding tolerances. In the first condition, observers were shown a sequence of colorful and grayscaled images of a material change, such as a damp fabric next to a totally dried version. The photos were shown throughout time, and the observer was asked to describe the material change as thoroughly as possible in a text field.

Tolerances can be placed on edges, holes, dimensions (with or without leaders), dimension extension lines, or even away from an edge (without a leader). You can also configure a warning tolerance, which is an indication that alerts you if the coloring process deviates from the tolerance zone.

2. Describe the Finish

In the context of interior space design, the finish is frequently a non-structural aspect. As a result, it is sometimes the most difficult to correctly measure and manage. Fortunately, color quantification technology is always improving. In reality, the introduction of spectral analysis has ushered in an altogether new age in the development of goods capable of detecting and measuring small changes in color. As a result, the client is better educated, and the bottom line benefits.

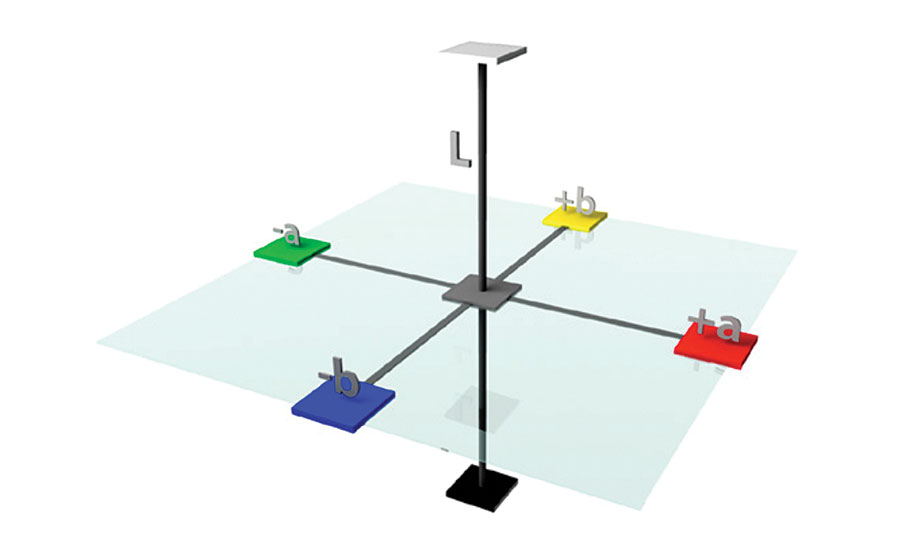

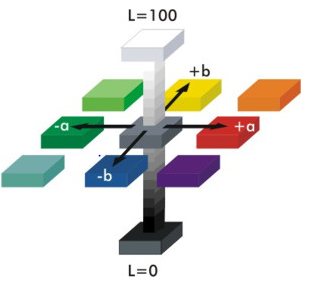

Tolerances can be applied to a variety of features, including edges, holes, measurements, and extension lines. A quality assurance procedure that requires a comprehensive inspection and documenting of color variation is the best way to achieve standardized tolerance. The industry has a lengthy history of using Delta-L* a*b* for this purpose, but the results aren't always stellar. Using a current tolerancing system, such as CIE 2000, is the only definite way to ensure long-term color correctness. A systematic quality assurance procedure that includes periodic, in-person inspections by an impartial third party is the most accurate and dependable way of acquiring these results.

3. Describe the Tolerances

Tolerances allow dimensional differences to be tolerated without affecting product quality of Machinery Parts. These tolerances differ between items and manufacturing processes.

When choosing a manufacturing technique, make sure the shop can retain your required tolerances at a reasonable price. Otherwise, you may have to outsource or settle for poor yield rates.

Tolerance is a level of dimensional variation permitted by a design, often expressed as a +/- value from a nominal specification. This is an important consideration when selecting a manufacturing process since it determines the sort of machine you will employ and how well your product will be produced.

Tolerances are classified into three types: limit dimensions, unilateral, and bilateral. A limit dimension displays the maximum and smallest permissible values, whereas a unilateral tolerance displays variance in only one direction. Bilateral tolerances exhibit variance in both directions, making them easier to control throughout the machining process.

It is essential to comprehend how tolerances are derived from managing dimensions. As the number of regulating dimensions grows, so does the total system tolerance, so be cautious when estimating how much you can get away with.

Depending on how many control dimensions are included, this can result in a significant amount of variance and an erroneous measurement. Knowing the maximum variance that may be accepted between two points is the best strategy to avoid this.

Selecting a factory with experience in the specific product and materials you're designing is another method to keep your tolerances within the scope of a given production process. This ensures that your products are made as precisely as possible and that the tolerances you select are adequate for the design of the parts.

Tolerance standards reduce the amount of effort required by designers by establishing uniform dimensional tolerance ranges for every geometry and features of the part. They also provide a solid foundation for determining the permissible error range (acceptable variation) for each component.

Tolerances are an everyday and vital part of the engineering process of Aluminum Machining Parts. They serve as the foundation for developing and communicating high-quality parts that fulfill the needs of customers.
