Precision Metal Washers Manufacturing

Modern industrial sectors continuously raise stricter requirements for ultra-tight dimensional tolerances, lightweight raw materials and intricate component assemblies, making generic stock washers unable to satisfy numerous advanced engineering scenarios. Design engineers now prefer custom precision metal washers built to bespoke technical standards, with micron-level dimensional allowances instead of millimeter-scale tolerances. This growing market demand has turned CNC-machined custom washers into an indispensable component for high-end performance industries that cannot afford inconsistent quality or unreliable operation.

CNCMachingParts specializes in custom metal washer production, covering precision shim washers, spacer washers, custom stainless steel washers and other CNC-machined hardware parts. Backed by state-of-the-art CNC turning, CNC milling and Swiss machining equipment, paired with complete precision testing facilities, we offer one-stop OEM custom washer manufacturing services for clients spanning automotive, robotic, electronic, medical, aerospace, oil & gas and industrial automation sectors.

This all-inclusive guide covers all critical knowledge that purchasers, mechanical engineers and product developers require for precision metal washer production. Key topics include material selection standards, applicable machining processes, allowable dimensional tolerances, surface finishing treatments, systematic quality assurance procedures, practical design guidance, and core criteria for choosing a trustworthy manufacturing supplier.

What Exactly Are Precision Metal Washers?

Crafted to ultra-rigorous dimensional standards, precision metal washers are flat or custom-shaped mechanical hardware pieces. They differ greatly from ordinary stamped washers sold in general hardware stores, as they are tailor-made to hit precise targets for thickness, flatness, concentricity, surface texture and material mechanical properties.

To attain ultra-tight tolerances and premium surface quality, fabricators usually process these washers via CNC turning, Swiss precision machining, fine grinding, or a hybrid of multiple precision manufacturing techniques.

Precision washers carry multiple vital roles within mechanical assemblies:

Uniformly spread clamping pressure across contact surfaces

Shield mating parts from damage during fastening

Sustain precise gaps between paired components

Absorb vibration during equipment operation

Stop bolts and fasteners from loosening over time

Boost sealing effectiveness of assembly joints

Offset minor dimensional deviations from other machined parts

Lower friction and abrasion between moving contact surfaces

Given their direct impact on the overall functionality of finished assemblies, most engineering teams opt for fully customized washer dimensions instead of adopting generic DIN or ISO standard sizes.

Currently, custom CNC-machined washers have become a staple component across all sectors that demand high-standard precision engineering.

Rising Demand for Custom Precision Metal Washers

Lightweight construction, miniaturized structures, faster operational speeds and stricter assembly tolerance limits have become core pursuits of contemporary product R&D, driving surging demand for bespoke washers that standard catalogue products fail to match.

Rather than settling for off-the-shelf washers with approximate dimensions, design engineers tailor-make washers matching unique assembly demands. This targeted design optimizes equipment performance and cuts total manufacturing expenses simultaneously.

Custom precision washers deliver a full suite of unique strengths:

· Precisely defined inner and outer diameters

· Bespoke thickness specifications

· More uniform load bearing capacity

· Elevated assembly precision

· Enhanced anti-corrosion capability

· Stable, consistent dimensional accuracy batch to batch

· Support for specialty alloy material fabrication

· Reduced long-term maintenance expenditure

Such advantages prove particularly critical for robotics, semiconductor machinery, aerospace hardware, medical instruments and electric vehicles. In these high-tech sectors, a tiny dimensional deviation as small as 0.02 mm is enough to compromise the entire product’s operational performance.

Types of Precision Metal Washers

Although "washer" is often used as a generic term, precision manufacturing includes many specialized designs developed for different engineering purposes.

Flat Washers

Flat washers are the most commonly used type of precision washer. They distribute bolt loads over a larger contact area, reducing surface stress while preventing damage to softer materials.

Precision Shim Washers

Shim washers are designed primarily for spacing and alignment rather than load distribution.

They allow engineers to:

Adjust bearing preload

Control shaft positioning

Maintain gear alignment

Eliminate assembly gaps

Fine-tune machine tolerances

Shim washers are frequently manufactured in thicknesses ranging from 0.02 mm to 3 mm, with extremely tight thickness tolerances.

Spacer Washers

Spacer washers maintain a fixed distance between two mechanical components.

Thrust Washers

Thrust washers reduce friction between rotating parts while supporting axial loads.

Shoulder Washers

Shoulder washers are non-metallic or metallic insulating components featuring a raised shoulder that isolates screws or shafts from surrounding materials.

Sealing Washers

Sealing washers combine metal with elastomer materials to prevent fluid leakage.

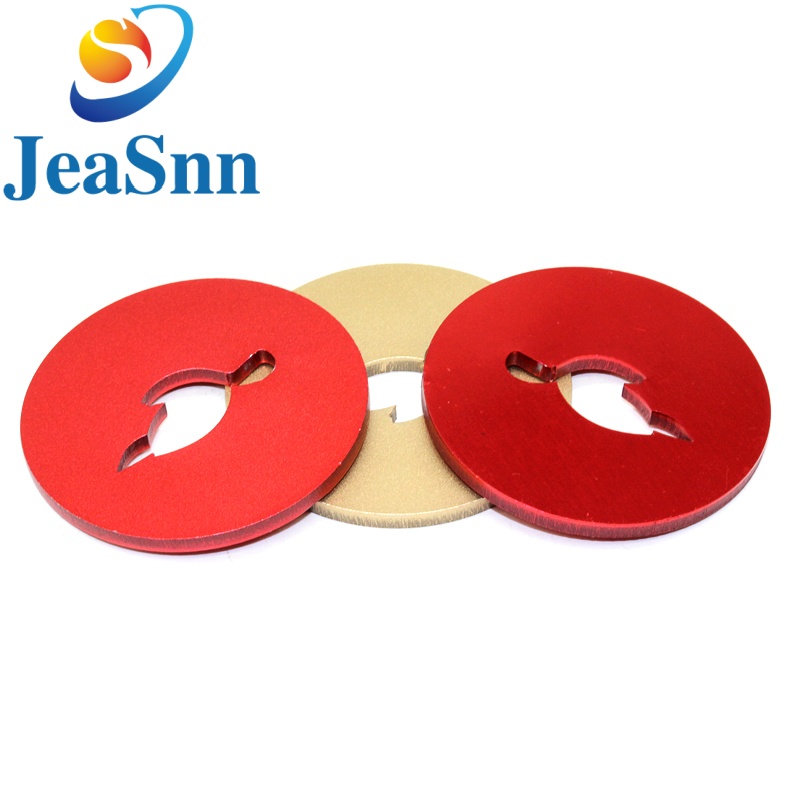

Custom Non-Standard Washers

Many OEM projects require completely customized washers designed specifically for one application.

CNCMachingParts delivers fully customized washer production based on your engineering drawings, CAD models or physical part samples. Before formal production kicks off, our professional engineering team will conduct thorough DFM (Design for Manufacturability) analysis on every design. We assist clients in optimizing dimensional tolerances, picking suitable raw materials, selecting optimal machining processes and lowering overall production expenses.

When Should You Choose CNC Machined Washers?

Tight dimensional tolerances

Low or medium production volumes

Prototype development

Frequent design revisions

Special materials such as titanium, PEEK, or Inconel

Non-standard dimensions

Precision thickness control

Superior surface finishes

Custom grooves, slots, or holes

High concentricity and flatness

Raw Materials for Precision Custom Metal Washer Production

Choosing suitable raw materials stands as a core step in producing precision washers, since material types directly determine the finished parts’ corrosion resistance, mechanical strength, wear resistance, cutting performance, weight and service lifespan.

To satisfy diverse industrial application requirements, CNCMachingParts fabricates tailor-made washers with an extensive range of metal materials and high-performance engineering plastics.

Our available washer material options cover: Stainless steel, aluminum, brass, copper, carbon steel, alloy steel, titanium and engineering plastics.

Why Partner with CNCMachingParts for Precision Custom Washer Fabrication

Picking a reliable manufacturing supplier carries equal weight to material selection and part design when producing precision washers. CNCMachingParts focuses on custom CNC machined precision parts, serving global clients across diverse sectors.

Full-Spectrum CNC Machining Capabilities

We deliver all-in-one manufacturing solutions covering prototyping and mass production with our complete processing lineup:

CNC Turning & Milling

Swiss Precision Machining

Multi-Axis Machining

Precision Grinding

Custom Surface Finishing

Component Assembly

Rich Experience Producing Various Custom Hardware

Beyond precision washers, we fabricate a full range of mechanical hardware: custom shafts, bushings, spacers, screws, pins, standard and custom fasteners, and general CNC machined parts. Our long-term manufacturing experience lets us fully grasp how washers coordinate with other assembly components.

Flexible Output for All Order Sizes

Our production lines adapt seamlessly to any project volume, including single prototype samples, small trial batches, medium-scale orders, and long-term OEM mass supply contracts.

Professional In-House Engineering Assistance

Our technical team works alongside clients to streamline every project via collaborative support:

Design optimization

Material matching guidance

DFM manufacturability review

Reasonable tolerance suggestions

Cost-saving production plans This joint development method boosts part machinability and cuts overall project expenses.

Rigorous Full-Process Quality Assurance

Quality checks run through every production procedure. Our full set of inspection equipment guarantees all custom washers conform to your technical drawings:

Coordinate Measuring Machines (CMM)

Optical measurement devices

Digital micrometers and height gauges

Surface roughness testers

Hardness testing machines

Industry-Leading Service for Global Clients

We supply precision components to worldwide enterprises spanning automotive, medical, aerospace, robotics, consumer electronics, semiconductor machinery, industrial automation and energy sectors. We customize our production workflows to match the unique strict standards of each field.

Simply send us your 2D drawings, 3D CAD files, or technical specifications, and our engineering team will review your design, recommend the most cost-effective manufacturing solution, and provide a competitive quotation.[email protected]
